Cup and cone tapered roller bearing: 33216

Cup and cone tapered roller bearing: 33216

Cup and cone tapered roller bearing
$220.76
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

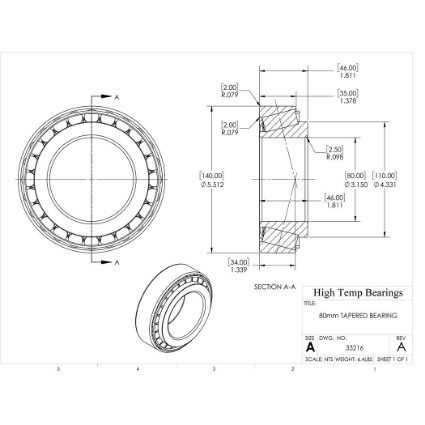

CAD
Specifications:
Attribute nameAttribute value
ConstructionSingle Row
Shaft Size80mm
D (mm)140
B (mm)46
C (lb)69241
C0 (lb)84304
Pu (lb)9330
Nr (RPM)3400
Nmax (RPM)4500
d1 (mm)110
T (mm)46
Weight(lbs)6.4
Code410109
Bore (mm)80
Da (mm)90
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)35
Damin-db (mm)119
damax (mm)90
dbmin (mm)92
Dbmin (mm)92
r1-r2 (mm)2.5
r3-r4 (mm)2
a (mm)34
Camin (mm)7
Cbmin (mm)11
ramax (mm)2.5
rbmax (mm)2
e0.43
Y1.4
Y00.8
t (mm)46
PackageQTY1
UOMEA
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
