Large Back to Back Double Row Tapered Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

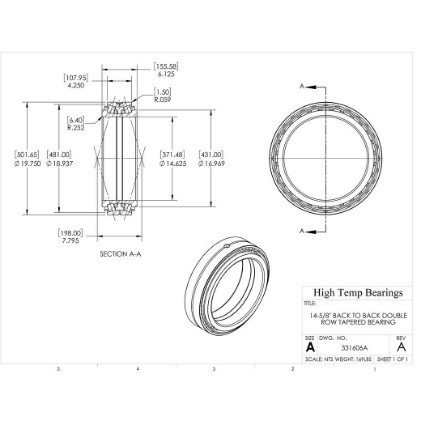

CAD
Specifications:
Attribute nameAttribute value
ConstructionDouble Row Back to Back
Shaft Size14-5/8"
D (mm)501.65
B (mm)155.575
C (lb)444225
C0 (lb)955443
Pu (lb)77559
d1 (mm)431
Weight(lbs)169
Code410242
Bore (mm)371.475
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
P (mm)107.95
r1-r2 (mm)6.4
r3-r4 (mm)1.5
a (mm)198
e0.44
Y01.4
k1.33
Y11.5
Y22.3
D1 (mm)481
CF (lbs)107909
Cfa (lbs)46536
PackageQTY1
UOMEA
This configuration features huge bore sizes suited for metal manufacturing rolling mill stands, and mining machinery. They support massive radial and axial loads and resist axial forces in both directions. This design reduces installation complexity by having a single common inner race that ensures precise positioning across all rollers. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly. The bearing construction can be customized to meet specific technical requirements.
