Large Face to Face Double Row Tapered Bearing: 331158A

Large Face to Face Double Row Tapered Bearing: 331158A

Large Face to Face Double Row Tapered Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

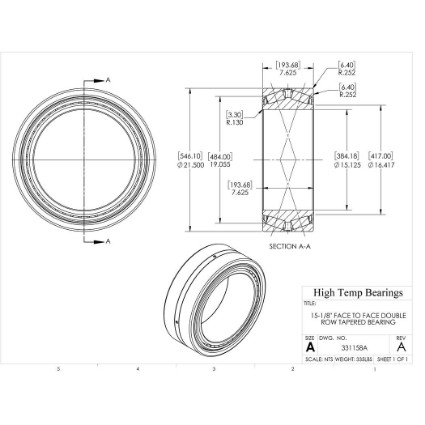

CAD
Specifications:
Attribute nameAttribute value
ConstructionDouble Row Face to Face
Shaft Size15-1/8"
D (mm)546.1
B (mm)193.675
C (lb)837192
C0 (lb)1865923
Pu (lb)143878
d1 (mm)417
Weight(lbs)335
Code410272
Bore (mm)384.175
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)193675
r1-r2 (mm)3.3
r3-r4 (mm)6.4
e0.33
Y02
k1.76
Y12
Y23
t (mm)193675
D1 (mm)484
CF (lbs)205701
Cfa (lbs)67668
PackageQTY1
UOMEA
This configuration features huge bore sizes suited for metal manufacturing rolling mill stands, and mining machinery. They support massive radial and axial loads and resist axial forces in both directions. This design reduces installation complexity by having a single common inner race that ensures precise positioning across all rollers. The face to face arrangement is more complicated to use correctly and is less popular than the back to back layout. Its main advantage is that the axial clearance in the bearing will decrease as it heats. It is more prone to overheating without control of heat flow. Still, it is an excellent choice in equipment that requires tight positioning control, provided the operating temperature and heat flow are stabilized. The bearing construction can be customized to meet specific technical requirements.
