95mm Tapered Bearing 32319
Print Page
Cup and cone tapered roller bearing: 32319
Cup and cone tapered roller bearing: 32319
Cup and cone tapered roller bearing
$1,401.75
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
Specifications:
Description
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
Product Information
Attribute name
Attribute value
Code
410136
Shaft Size
95mm
Seals
None
Construction
Single Row
Material
52100
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA

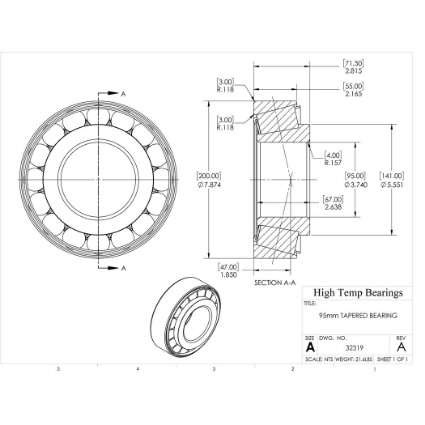

Dimensions
Attribute name
Attribute value
Bore (mm)
95
D (mm)
200
B (mm)
71.5
d1 (mm)
141
T (mm)
67
P (mm)
55
r1-r2 (mm)
4
r3-r4 (mm)
3
a (mm)
47
t (mm)
67
Abutment Dimensions
Attribute name
Attribute value
Da (mm)
115
Damin-db (mm)
166
damax (mm)
115
dbmin (mm)
111
Dbmin (mm)
111
Camin (mm)
8
Cbmin (mm)
16.5
ramax (mm)
4
rbmax (mm)
3
Calculation Data
Attribute name
Attribute value
Nr (RPM)
Reference speed
2400
Nmax (RPM)
Limiting speed
3400
C (lb)
Dynamic load capacity
120273
C0 (lb)
Static load capacity
150623
Pu (lb)
Fatigue load limit
16186
e
Limiting value
0.35
Y
Calculation factor
1.7
Y0
Calculation factor
0.9
Mass
Attribute name
Attribute value
Weight(lbs)
21.6
Tolerance Class
Attribute name
Attribute value
Clearance
CN
Safe Loads
Attribute name
Attribute value
Tmax (F)
250
Tmin (F)
-40
