Back to back matched tapered roller bearing: 32220T107DB

Back to back matched tapered roller bearing: 32220T107DB

Back to back matched tapered roller bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Description
Matched back-to-back tapered roller bearings are the most popular double row tapered bearing design. They carry heavy radial and axial loads and axial forces in both directions. They are manufactured together as a set that includes two tapered roller bearings, and a precision machined set of shims. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410219
Shaft Size100mm
SealsNone
ConstructionBack to Back Matched Set
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

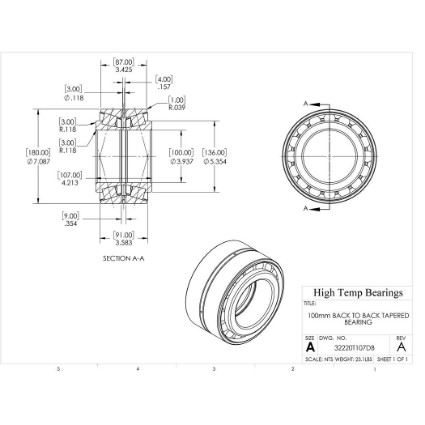

Dimensions
Attribute nameAttribute value
Bore (mm)100
D (mm)180
B (mm)107
d1 (mm)136
P (mm)87
r1-r2 (mm)3
a (mm)91
K (mm)3
b (mm)4
r5 (mm)1
l (mm)9
Abutment Dimensions
Attribute nameAttribute value
dbmin (mm)114
Dbmin (mm)114
Cbmin (mm)10
ramax (mm)3
rcmax (mm)1
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed2400
Nmax (RPM)Limiting speed3600
C (lb)Dynamic load capacity150173
C0 (lb)Static load capacity197833
Pu (lb)Fatigue load limit21694
eLimiting value0.43
Y0Calculation factor1.6
Y1Calculation factor1.6
Y2Calculation factor2.3
Mass
Attribute nameAttribute value
Weight(lbs)23.1
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
