Back to back matched tapered roller bearing
RFQ

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD

Specifications:

Description

Matched back-to-back tapered roller bearings are the most popular double row tapered bearing design. They carry heavy radial and axial loads and axial forces in both directions. They are manufactured together as a set that includes two tapered roller bearings, and a precision machined set of shims. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code410203
Shaft Size70mm
SealsNone
ConstructionBack to Back Matched Set
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

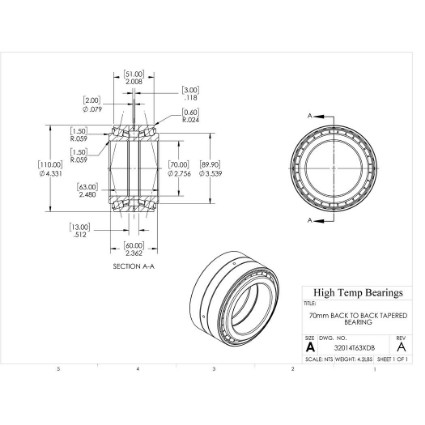

Dimensions

Attribute nameAttribute value
Bore (mm)70
D (mm)110
B (mm)63
d1 (mm)89.9
P (mm)51
r1-r2 (mm)1.5
a (mm)60
K (mm)2
b (mm)3
r5 (mm)0.6
l (mm)13

Abutment Dimensions

Attribute nameAttribute value
dbmin (mm)80
Dbmin (mm)80
Cbmin (mm)6
ramax (mm)15
rcmax (mm)0.6

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed3800
Nmax (RPM)Limiting speed5600
C (lb)Dynamic load capacity48109
C0 (lb)Static load capacity68567
Pu (lb)Fatigue load limit7756
eLimiting value0.43
Y0Calculation factor1.6
Y1Calculation factor1.6
Y2Calculation factor2.3

Mass

Attribute nameAttribute value
Weight(lbs)4.2

Tolerance Class

Attribute nameAttribute value
ClearanceCN

Safe Loads

Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
