Back to back matched tapered roller bearing: 32008T415XDB

Back to back matched tapered roller bearing: 32008T415XDB

Back to back matched tapered roller bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

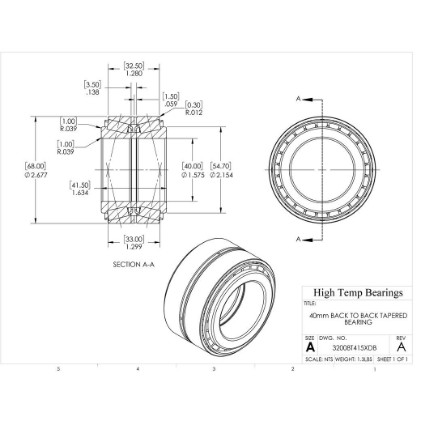

CAD
Specifications:
Attribute nameAttribute value
ConstructionBack to Back Matched Set
Shaft Size40mm
D (mm)68
B (mm)41.5
C (lb)24954
C0 (lb)32148
Pu (lb)3440
Nr (RPM)6300
Nmax (RPM)9500
d1 (mm)54.7
Weight(lbs)1.3
Code410191
Bore (mm)40
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)32.5
dbmin (mm)47.5
Dbmin (mm)47.5
r1-r2 (mm)1
a (mm)33
Cbmin (mm)4.5
ramax (mm)1
e0.37
Y01.8
Y11.8
Y22.7
r5 (mm)0.3
l (mm)3.5
rcmax (mm)0.3
PackageQTY1
UOMEA
Matched back-to-back tapered roller bearings are the most popular double row tapered bearing design. They carry heavy radial and axial loads and axial forces in both directions. They are manufactured together as a set that includes two tapered roller bearings, and a precision machined set of shims. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly.
