Large Four Row Cylindrical Roller Bearing
RFQ

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

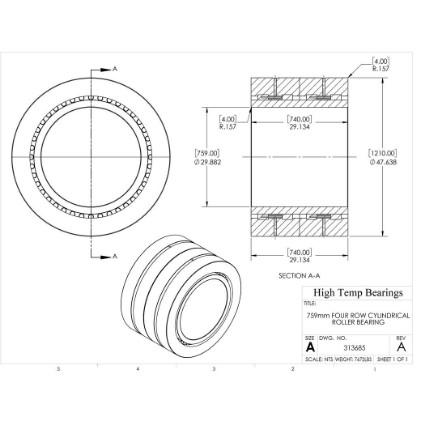

CAD

Specifications:

Description

This configuration features huge bore sizes for metals manufacturing rolling mill stands and mining machinery. Supports massive radial loads with a high maximum allowable rpm limit in a design that simplifies installation. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code410667
Shaft Size759mm
SealsNone
ConstructionFour Row
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

Dimensions

Attribute nameAttribute value
Bore (mm)759
D (mm)1210
B (mm)740
P (mm)740
r1-r2 (mm)4
r3-r4 (mm)4

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic load capacity6066498
C0 (lb)Static load capacity18879544
Pu (lb)Fatigue load limit843937

Mass

Attribute nameAttribute value
Weight(lbs)7672

Tolerance Class

Attribute nameAttribute value
ClearanceCN

Safe Loads

Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
