Face to face matched tapered roller bearing: 31320XDF

Face to face matched tapered roller bearing: 31320XDF

Face to face matched tapered roller bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

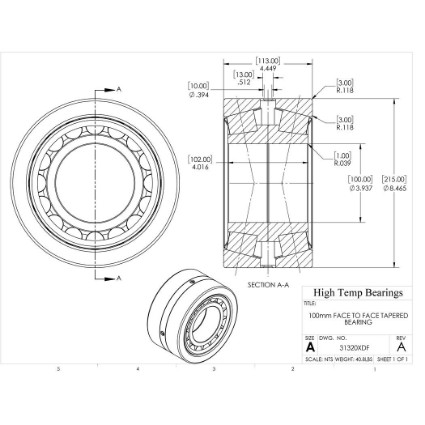

CAD
Specifications:
Description
Matched face to face tapered roller bearings handle axial force in both directions and large radial loads while maintaining accurate centering. They are manufactured together as a set that includes two tapered roller bearings, and a precision machined set of shims. This configuration is more complicated to use correctly and is less popular than the back to back arrangement. Its main advantage is that the axial clearance in the bearing will decrease as it heats. It is more prone to overheating without control of heat flow. Still, it is an excellent choice in equipment that requires tight positioning control, such as machining tools with forced cooling systems.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410189
Shaft Size100mm
SealsNone
ConstructionFace to Face Matched Set
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Dimensions
Attribute nameAttribute value
Bore (mm)100
D (mm)215
B (mm)113
r3-r4 (mm)3
K (mm)10
2B (mm)102
b (mm)13
r5 (mm)1
Abutment Dimensions
Attribute nameAttribute value
Da (mm)121
Damin-db (mm)168
damax (mm)121
Camin (mm)7
ramax (mm)3
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed1700
Nmax (RPM)Limiting speed3000
C (lb)Dynamic load capacity153995
C0 (lb)Static load capacity209073
Pu (lb)Fatigue load limit22931
eLimiting value0.83
Y0Calculation factor0.8
Y1Calculation factor0.81
Y2Calculation factor1.2
Mass
Attribute nameAttribute value
Weight(lbs)40.8
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
