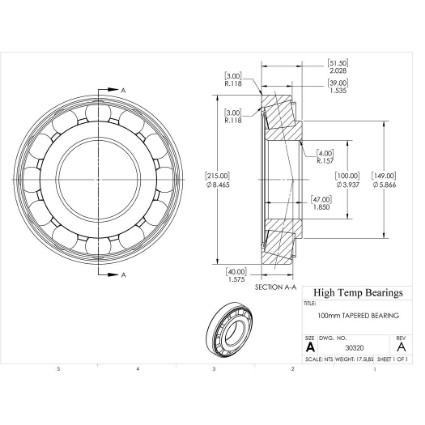

100mm Tapered Bearing 30320
Print Page
Cup and cone tapered roller bearing: 30320
Cup and cone tapered roller bearing: 30320
Cup and cone tapered roller bearing
$672.36
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
Specifications:
Description
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
Product Information
Attribute name
Attribute value
Code
410144
Shaft Size
100mm
Seals
None
Construction
Single Row
Material
52100
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Dimensions
Attribute name
Attribute value
Bore (mm)
100
D (mm)
215
B (mm)
51.5
d1 (mm)
149
T (mm)
47
P (mm)
39
r1-r2 (mm)
4
r3-r4 (mm)
3
a (mm)
40
t (mm)
47
Abutment Dimensions
Attribute name
Attribute value
Da (mm)
128
Damin-db (mm)
184
damax (mm)
128
dbmin (mm)
116
Dbmin (mm)
116
Camin (mm)
6
Cbmin (mm)
12.5
ramax (mm)
4
rbmax (mm)
3
Calculation Data
Attribute name
Attribute value
Nr (RPM)
Reference speed
2400
Nmax (RPM)
Limiting speed
3200
C (lb)
Dynamic load capacity
96893
C0 (lb)
Static load capacity
110157
Pu (lb)
Fatigue load limit
11915
e
Limiting value
0.35
Y
Calculation factor
1.7
Y0
Calculation factor
0.9
Mass
Attribute name
Attribute value
Weight(lbs)
17.5
Tolerance Class
Attribute name
Attribute value
Clearance
CN
Safe Loads
Attribute name
Attribute value
Tmax (F)
250
Tmin (F)
-40
