Cup and cone tapered roller bearing: 30317

Cup and cone tapered roller bearing: 30317

Cup and cone tapered roller bearing
$355.32
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Description
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410119
Shaft Size85mm
SealsNone
ConstructionSingle Row
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

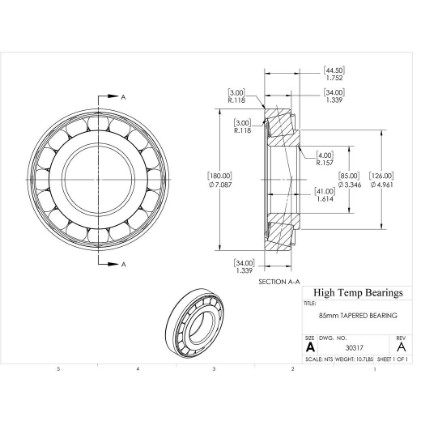

Dimensions
Attribute nameAttribute value
Bore (mm)85
D (mm)180
B (mm)44.5
d1 (mm)126
T (mm)41
P (mm)34
r1-r2 (mm)4
r3-r4 (mm)3
a (mm)34
t (mm)41
Abutment Dimensions
Attribute nameAttribute value
Da (mm)108
Damin-db (mm)156
damax (mm)108
dbmin (mm)100
Dbmin (mm)100
Camin (mm)5
Cbmin (mm)10.5
ramax (mm)4
rbmax (mm)3
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed3000
Nmax (RPM)Limiting speed3800
C (lb)Dynamic load capacity83629
C0 (lb)Static load capacity82056
Pu (lb)Fatigue load limit9105
eLimiting value0.35
YCalculation factor1.7
Y0Calculation factor0.9
Mass
Attribute nameAttribute value
Weight(lbs)10.7
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
