Cup and cone tapered roller bearing: 30307

Cup and cone tapered roller bearing: 30307

Cup and cone tapered roller bearing
$55.65
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

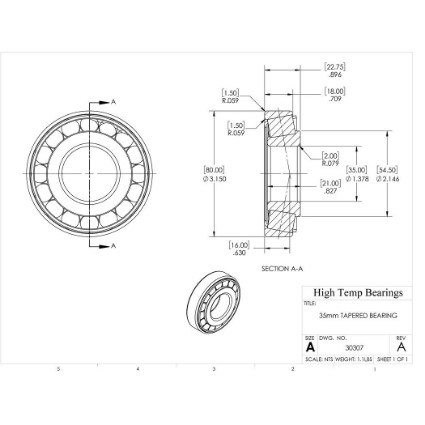

CAD
Specifications:
Attribute nameAttribute value
ConstructionSingle Row
Shaft Size35mm
D (mm)80
B (mm)22.75
C (lb)19986
C0 (lb)16524
Pu (lb)1866
Nr (RPM)7500
Nmax (RPM)9000
d1 (mm)54.5
T (mm)21
Weight(lbs)1.1
Code410033
Bore (mm)35
Da (mm)46
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)18
Damin-db (mm)70
damax (mm)46
dbmin (mm)44.5
Dbmin (mm)44.5
r1-r2 (mm)2
r3-r4 (mm)1.5
a (mm)16
Camin (mm)3
Cbmin (mm)4.5
ramax (mm)2
rbmax (mm)1.5
e0.31
Y1.9
Y01.1
t (mm)21
PackageQTY1
UOMEA
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
