Cup and cone tapered roller bearing: 30219

Cup and cone tapered roller bearing: 30219

Cup and cone tapered roller bearing
$272.91
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

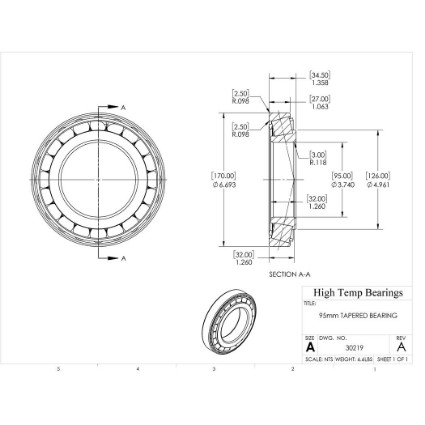

CAD
Specifications:
Attribute nameAttribute value
ConstructionSingle Row
Shaft Size95mm
D (mm)170
B (mm)34.5
C (lb)59799
C0 (lb)61823
Pu (lb)7082
Nr (RPM)3200
Nmax (RPM)3800
d1 (mm)126
T (mm)32
Weight(lbs)6.6
Code410132
Bore (mm)95
Da (mm)110
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)27
Damin-db (mm)149
damax (mm)110
dbmin (mm)108
Dbmin (mm)108
r1-r2 (mm)3
r3-r4 (mm)2.5
a (mm)32
Camin (mm)5
Cbmin (mm)7.5
ramax (mm)3
rbmax (mm)2.5
e0.43
Y1.4
Y00.8
t (mm)32
PackageQTY1
UOMEA
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
