Face to face matched tapered roller bearing: 30218DF

Face to face matched tapered roller bearing: 30218DF

Face to face matched tapered roller bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Description
Matched face to face tapered roller bearings handle axial force in both directions and large radial loads while maintaining accurate centering. They are manufactured together as a set that includes two tapered roller bearings, and a precision machined set of shims. This configuration is more complicated to use correctly and is less popular than the back to back arrangement. Its main advantage is that the axial clearance in the bearing will decrease as it heats. It is more prone to overheating without control of heat flow. Still, it is an excellent choice in equipment that requires tight positioning control, such as machining tools with forced cooling systems.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410183
Shaft Size90mm
SealsNone
ConstructionFace to Face Matched Set
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

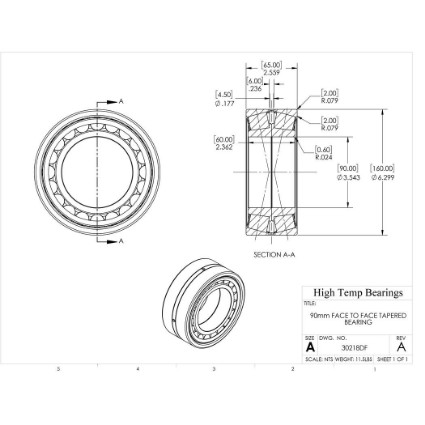

Dimensions
Attribute nameAttribute value
Bore (mm)90
D (mm)160
B (mm)65
r3-r4 (mm)2
K (mm)4.5
2B (mm)60
b (mm)6
r5 (mm)0.6
Abutment Dimensions
Attribute nameAttribute value
Da (mm)104
Damin-db (mm)140
damax (mm)104
Camin (mm)5
ramax (mm)2
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed2800
Nmax (RPM)Limiting speed4000
C (lb)Dynamic load capacity92397
C0 (lb)Static load capacity110157
Pu (lb)Fatigue load limit12814
eLimiting value0.43
Y0Calculation factor1.6
Y1Calculation factor1.6
Y2Calculation factor2.3
Mass
Attribute nameAttribute value
Weight(lbs)11.5
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
