Cup and cone tapered roller bearing: 30216

Cup and cone tapered roller bearing: 30216

Cup and cone tapered roller bearing
$249.93

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
Product Information
Attribute nameAttribute value
Code410107
Shaft Size80mm
SealsNone
ConstructionSingle Row
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

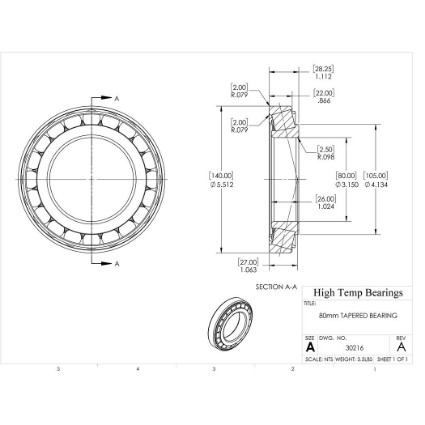

Dimensions
Attribute nameAttribute value
Bore (mm)80
D (mm)140
B (mm)28.25
d1 (mm)105
T (mm)26
P (mm)22
r1-r2 (mm)2.5
r3-r4 (mm)2
a (mm)27
t (mm)26
Abutment Dimensions
Attribute nameAttribute value
Da (mm)92
Damin-db (mm)124
damax (mm)92
dbmin (mm)92
Dbmin (mm)92
Camin (mm)4
Cbmin (mm)6
ramax (mm)2.5
rbmax (mm)2
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed3800
Nmax (RPM)Limiting speed4800
C (lb)Dynamic load capacity41365
C0 (lb)Static load capacity41140
Pu (lb)Fatigue load limit4766
eLimiting value0.43
YCalculation factor1.4
Y0Calculation factor0.8
Mass
Attribute nameAttribute value
Weight(lbs)3.5
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
