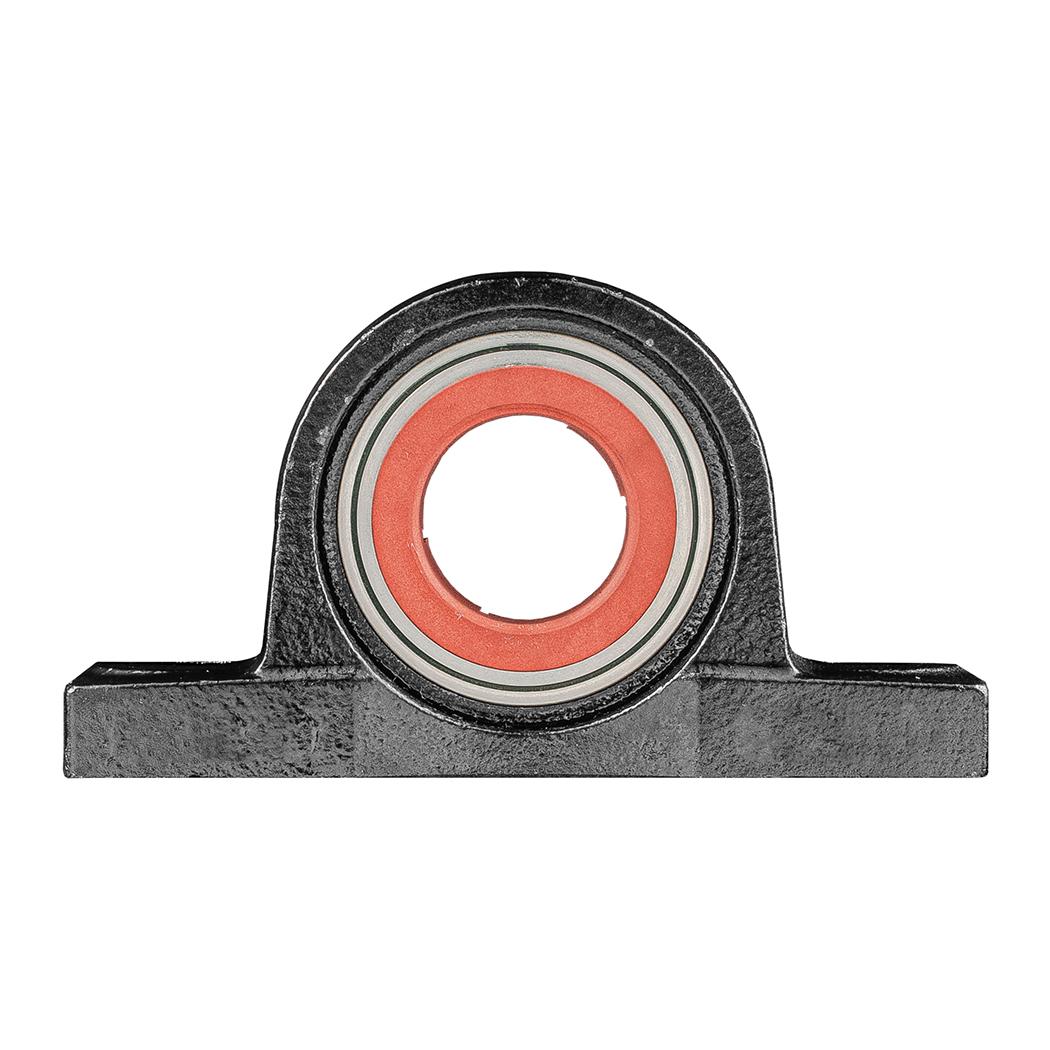

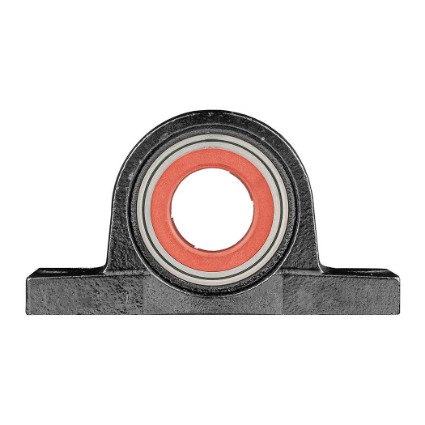

Low Base Pillow Block NT600 Composite Sleeve Bearing: 2PL205NT600-088

Low Base Pillow Block NT600 Composite Sleeve Bearing: 2PL205NT600-088

Low Base Pillow Block, NT600, Solid
$244.24
MANUAL
Specifications:
Attribute nameAttribute value
ConstructionLow Base Pillow Block
Tmax (F)500
Bore (in)0.895
A (in)1.17
B (in)5.512
C (in)1.496
D (in)4.134
H (in)0.63
J (in)2.677
L (in)1.678
M (in)1.311
S1 (in)0.453
S2 (in)0.839
Bearing InsertHR205-NT6-088
Static (lb)488
Weight(lbs)1.95
Code104123
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)0.875
Tmin (F)-400
MaterialNT600
10 RPM (lb)488
50 RPM (lb)488
100 RPM (lb)488
200 RPM (lb)488
Max Cap Load (lb)488
Max Thrust Load (lb)49
Tservice (F)500
Shaft size7/8"
