Split Pillow Block NT600 Composite Sleeve Bearing: 2PB215SNT600-294P

Picture of Split Pillow Block NT600 Composite Sleeve Bearing

Split Pillow Block NT600 Composite Sleeve Bearing: 2PB215SNT600-294P

Pillow Block 500 °F Split Mounted PTFE Composite Sleeve Bearing

$1,466.48

Qty:

checkbox icon This item typically ship in 1-4 weeks.

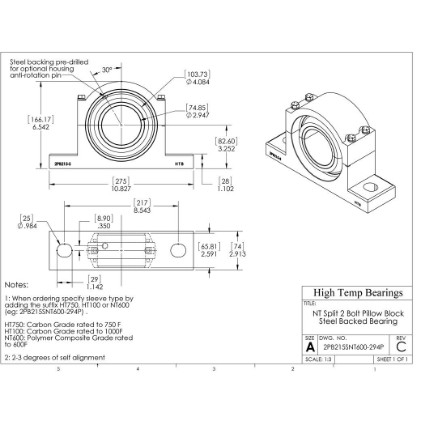

CAD

Specifications:

Description

Fully split, self-aligning, maintenance-free, PTFE composite sleeve is a proven, simple, and reliable bearing that reduces torque by up to 100x and has up to 10x more wear life than a carbon sleeve bearing. They run silently, fully self-lubricate, dampen vibration, are corrosion-proof, and maintenance-free. Ideal for use in hot, extreme cold, and corrosive applications under 100 RPM. It is dimensionally interchangeable with a solid mounted bearing.

Free Ground Shipping on orders over $99 use Code "SHIPFREE" at checkout

Attribute name		Attribute value
Daily Shipping Deal		SHIPFREE

Product Information

Attribute name		Attribute value
Code		440034
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SSP
Construction		Split Pillow Block
Shaft Size		2-15/16"
Material		NT600

Dimensions

Attribute name		Attribute value
Bore (in)		2.961
ShaftDia (in)		2.938
A (in)		2.591
B (in)		1.827
C (in)		2.913
D (in)		8.543
H (in)		1.12
J (in)		6.542
L (in)		4.84
M (in)		3.252
S1 (in)		0.984
S2 (in)		1.142

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	3818
10 RPM (lb)	Load capacity at 10 RPM	3818
50 RPM (lb)	Load capacity at 50 RPM	3818
100 RPM (lb)	Load capacity at 100 RPM	3818
200 RPM (lb)	Load capacity at 200 RPM	764
Max Cap Load (lb)		3818
Max Thrust Load (lb)		382

Mass

Attribute name		Attribute value
Weight(lbs)		22

Safe Loads

Attribute name		Attribute value
Tmax (F)		500
Tmin (F)		-400
Tservice (F)	Max use temperature in air	500

Associated Products

Attribute name		Attribute value
Bearing Insert		SSP215-NT6-294
