Pillow Block HT1000 Carbon Sleeve Bearing: 2PB212HT100-244

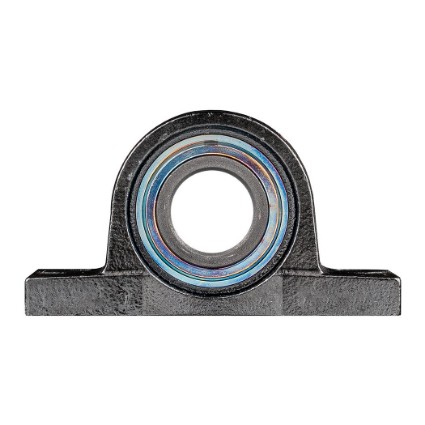

Picture of Pillow Block HT1000 Carbon Sleeve Bearing

Pillow Block HT1000 Carbon Sleeve Bearing: 2PB212HT100-244

Pillow Block 1000 °F Solid Mounted Carbon Sleeve Bearing

$807.61

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Self-aligning, maintenance-free, carbon-graphite sleeve in a nickel-plated carbon steel backing ring, mounted in a cast iron housing. It uses our proven design that maintains the self-aligning capability of the bearing by preventing oxidation of the spherical surfaces and our tight-grained graphite that resists seizure in outdoor intermittent service applications.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		300129
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		HR
Construction		Pillow Block
Shaft Size		2-7/16"
Material		HT1000

Dimensions

Attribute name		Attribute value
Bore (in)		2.446
ShaftDia (in)		2.438
A (in)		1.94
B (in)		9.488
C (in)		2.756
D (in)		7.244
H (in)		0.984
J (in)		5.433
L (in)		3.436
M (in)		2.748
S1 (in)		0.748
S2 (in)		0.984

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	7500
10 RPM (lb)	Load capacity at 10 RPM	3760
50 RPM (lb)	Load capacity at 50 RPM	2360
100 RPM (lb)	Load capacity at 100 RPM	1180
200 RPM (lb)	Load capacity at 200 RPM	590
Max Cap Load (lb)		2360
Max Thrust Load (lb)		376

Mass

Attribute name		Attribute value
Weight(lbs)		12

Safe Loads

Attribute name		Attribute value
Tmax (F)		1000
Tmin (F)		-200
Tservice (F)	Max use temperature in air	1000

Associated Products

Attribute name		Attribute value
Bearing Insert		HR212-HT1-244
