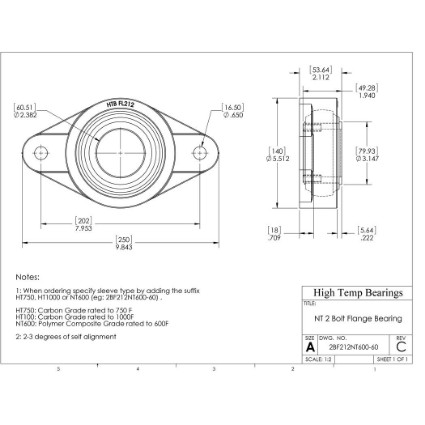

2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF212NT600-60

2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF212NT600-60

2-Bolt, NT600, Solid
$602.00
CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction2-Bolt Flange
Tmax (F)500
Bore (in)2.382
A (in)1.94
B (in)9.843
C (in)2.112
D (in)7.953
F (in)0.65
H (in)0.79
J (in)0.222
L (in)3.147
M (in)5.512
Bearing InsertHR212-NT6-60
Static (lb)2299
Weight(lbs)9.4
Code400021
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)2.362
Tmin (F)-400
MaterialNT600
10 RPM (lb)2299
50 RPM (lb)2299
100 RPM (lb)2299
200 RPM (lb)460
Max Cap Load (lb)2299
Max Thrust Load (lb)230
Tservice (F)500
Shaft size60mm
