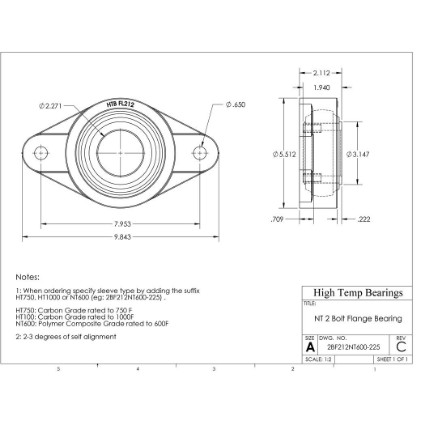

2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF212NT600-225

2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF212NT600-225

2-Bolt, NT600, Solid
$602.00
CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction2-Bolt Flange
Tmax (F)500
Bore (in)2.271
A (in)1.94
B (in)9.843
C (in)2.112
D (in)7.953
F (in)0.65
H (in)0.79
J (in)0.222
L (in)3.147
M (in)5.512
Bearing InsertHR212-NT6-225
Static (lb)2190
Weight(lbs)9.4
Code103977
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)2.25
Tmin (F)-400
MaterialNT600
10 RPM (lb)2190
50 RPM (lb)2190
100 RPM (lb)2190
200 RPM (lb)438
Max Cap Load (lb)1920
Max Thrust Load (lb)219
Tservice (F)500
Shaft size2 1/4"
