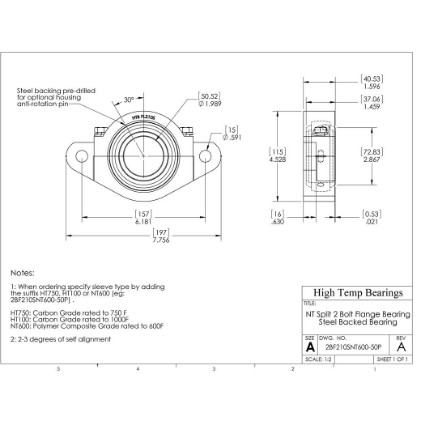

Split 2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF210SNT600-50P

Split 2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF210SNT600-50P

2-Bolt, NT600, Split Steel
$1,032.00
CAD
MANUAL
Specifications:
Attribute nameAttribute value
ConstructionSplit 2-Bolt Flange
Tmax (F)500
Bore (in)1.989
A (in)1.459
B (in)7.756
C (in)1.596
D (in)6.181
F (in)0.591
H (in)0.63
J (in)0.21
L (in)2.867
M (in)4.528
Bearing InsertSSP210-NT6-50
Static (lb)1442
Weight(lbs)5.2
Code440010
PackageQTY1
UOMEA
SeriesSSP
ShaftDia (in)1.969
Tmin (F)-400
MaterialNT600
10 RPM (lb)1442
50 RPM (lb)1442
100 RPM (lb)1442
200 RPM (lb)288
Max Cap Load (lb)1442
Max Thrust Load (lb)144
Tservice (F)500
Shaft size50mm
