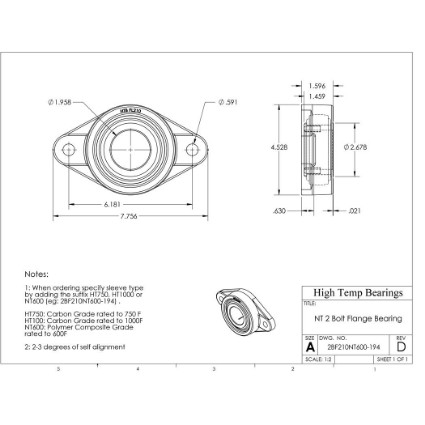

2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF210NT600-194

2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF210NT600-194

2-Bolt, NT600, Solid
$447.89
CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction2-Bolt Flange
Tmax (F)500
Bore (in)1.958
A (in)1.459
B (in)7.756
C (in)1.596
D (in)6.181
F (in)0.591
H (in)0.63
J (in)0.21
L (in)2.678
M (in)4.528
Bearing InsertHR210-NT6-194
Static (lb)1420
Weight(lbs)5.1
Code400016
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)1.938
Tmin (F)-400
MaterialNT600
10 RPM (lb)1420
50 RPM (lb)1420
100 RPM (lb)1420
200 RPM (lb)284
Max Cap Load (lb)1420
Max Thrust Load (lb)142
Tservice (F)500
Shaft size1 15/16"
