2-Bolt Flange HT750 Carbon Sleeve Bearing: 2BF210HT750-194

Picture of 2-Bolt Flange HT750 Carbon Sleeve Bearing

2-Bolt Flange HT750 Carbon Sleeve Bearing: 2BF210HT750-194

2-Bolt Flange 750 °F Solid Mounted Carbon Sleeve Bearing

$408.21

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Self-aligning, maintenance-free, carbon-graphite sleeve in a nickel-plated carbon steel backing ring, mounted in a cast iron housing. It uses our proven design that maintains the self-aligning capability of the bearing by preventing oxidation of the spherical surfaces and our tight-grained graphite that resists seizure in outdoor intermittent service applications.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		300044
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		HR
Construction		2-Bolt Flange
Shaft Size		1-15/16"
Material		HT750

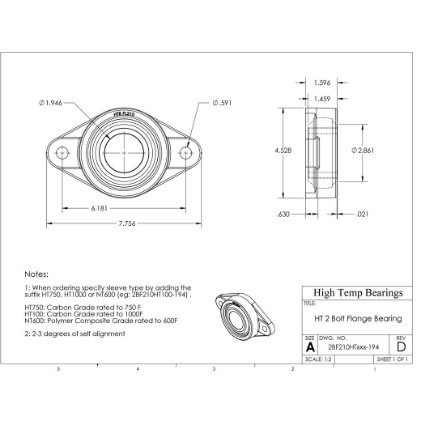

Dimensions

Attribute name		Attribute value
Bore (in)		1.946
ShaftDia (in)		1.938
A (in)		1.459
B (in)		7.756
C (in)		1.596
D (in)		6.181
F (in)		0.591
H (in)		0.63
J (in)		0.21
L (in)		2.861
M (in)		4.528

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	4700
10 RPM (lb)	Load capacity at 10 RPM	2360
50 RPM (lb)	Load capacity at 50 RPM	1860
100 RPM (lb)	Load capacity at 100 RPM	930
200 RPM (lb)	Load capacity at 200 RPM	465
Max Cap Load (lb)		1920
Max Thrust Load (lb)		236

Mass

Attribute name		Attribute value
Weight(lbs)		5.1

Safe Loads

Attribute name		Attribute value
Tmax (F)		750
Tmin (F)		-40
Tservice (F)	Max use temperature in air	750

Associated Products

Attribute name		Attribute value
Bearing Insert		HR210-HT7-194
