2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF209NT600-45

2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF209NT600-45

2-Bolt, NT600, Solid
$410.05

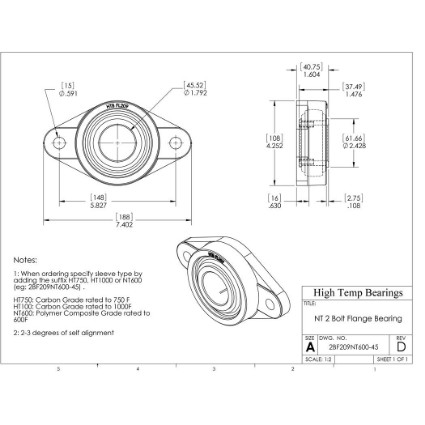

CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction2-Bolt Flange
Tmax (F)500
Bore (in)1.792
A (in)1.476
B (in)7.42
C (in)1.64
D (in)5.827
F (in)0.591
H (in)0.63
J (in)0.18
L (in)2.428
M (in)4.252
Bearing InsertHR209-NT6-45
Static (lb)1314
Weight(lbs)4.4
Code103963
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)1.772
Tmin (F)-400
MaterialNT600
10 RPM (lb)1314
50 RPM (lb)1314
100 RPM (lb)1314
200 RPM (lb)1314
Max Cap Load (lb)1314
Max Thrust Load (lb)131
Tservice (F)500
Shaft size45mm
