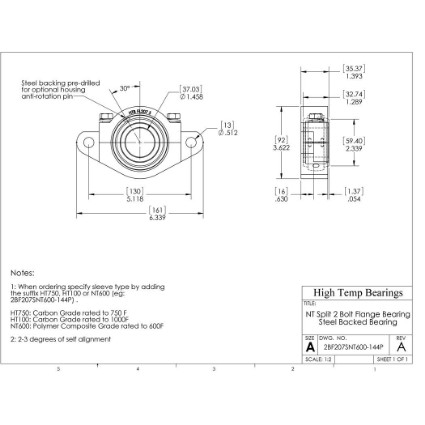

Split 2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF207SNT600-144P

Split 2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF207SNT600-144P

2-Bolt, NT600, Split Steel
$765.60
CAD
MANUAL
Specifications:
Attribute nameAttribute value
ConstructionSplit 2-Bolt Flange
Tmax (F)500
Bore (in)1.458
A (in)1.289
B (in)6.339
C (in)1.393
D (in)5.118
F (in)0.512
H (in)0.63
J (in)0.54
L (in)2.339
M (in)3.622
Bearing InsertSSP207-NT6-144
Static (lb)932
Weight(lbs)3.3
Code440002
PackageQTY1
UOMEA
SeriesSSP
ShaftDia (in)1.438
Tmin (F)-400
MaterialNT600
10 RPM (lb)932
50 RPM (lb)932
100 RPM (lb)932
200 RPM (lb)932
Max Cap Load (lb)932
Max Thrust Load (lb)93
Tservice (F)500
Shaft size1 7/16"
