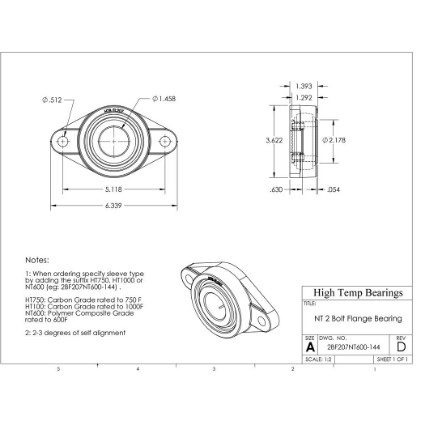

2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF207NT600-144

2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF207NT600-144

2-Bolt, NT600, Solid
$326.80
CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction2-Bolt Flange
Tmax (F)500
Bore (in)1.458
A (in)1.292
B (in)6.339
C (in)1.393
D (in)5.118
F (in)0.512
H (in)0.63
J (in)0.54
L (in)2.178
M (in)3.622
Bearing InsertHR207-NT6-144
Static (lb)932
Weight(lbs)2.9
Code400010
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)1.438
Tmin (F)-400
MaterialNT600
10 RPM (lb)932
50 RPM (lb)932
100 RPM (lb)932
200 RPM (lb)932
Max Cap Load (lb)932
Max Thrust Load (lb)93
Tservice (F)500
Shaft size1 7/16"
