2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF206NT600-112

2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF206NT600-112

2-Bolt, NT600, Solid
$292.40

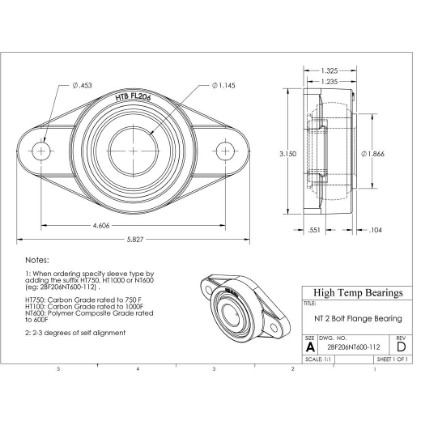

CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction2-Bolt Flange
Tmax (F)500
Bore (in)1.145
A (in)1.235
B (in)5.827
C (in)1.325
D (in)4.66
F (in)0.453
H (in)0.551
J (in)0.14
L (in)1.866
M (in)3.15
Bearing InsertHR206-NT6-112
Static (lb)697
Weight(lbs)2.1
Code400004
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)1.125
Tmin (F)-400
MaterialNT600
10 RPM (lb)697
50 RPM (lb)697
100 RPM (lb)697
200 RPM (lb)697
Max Cap Load (lb)697
Max Thrust Load (lb)70
Tservice (F)500
Shaft size1 1/8"
