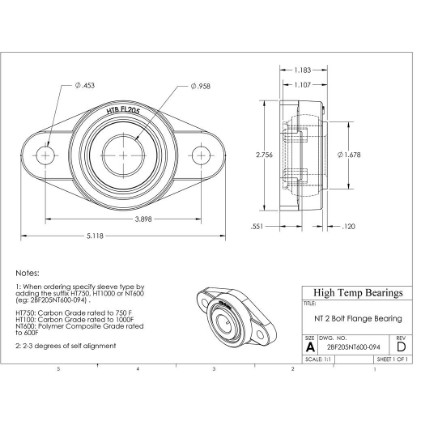

2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF205NT600-094

2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF205NT600-094

2-Bolt, NT600, Solid
$244.24
CAD
MANUAL
Specifications:
Attribute nameAttribute value
Construction2-Bolt Flange
Tmax (F)500
Bore (in)0.958
A (in)1.17
B (in)5.118
C (in)1.183
D (in)3.898
F (in)0.453
H (in)0.551
J (in)0.12
L (in)1.678
M (in)2.756
Bearing InsertHR205-NT6-094
Static (lb)523
Weight(lbs)1.5
Code103936
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)0.938
Tmin (F)-400
MaterialNT600
10 RPM (lb)523
50 RPM (lb)523
100 RPM (lb)523
200 RPM (lb)523
Max Cap Load (lb)523
Max Thrust Load (lb)52
Tservice (F)500
Shaft size15/16”
