2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF204NT600-20

2-Bolt Flange NT600 Composite Sleeve Bearing: 2BF204NT600-20

2-Bolt, NT600, Solid
$195.40
CAD
MANUAL

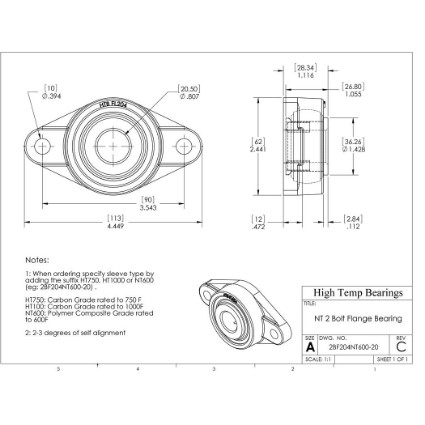

Specifications:
Attribute nameAttribute value
Construction2-Bolt Flange
Tmax (F)500
Bore (in)0.807
A (in)1.55
B (in)4.449
C (in)1.116
D (in)3.543
F (in)0.394
H (in)0.472
J (in)0.112
L (in)1.428
M (in)2.441
Bearing InsertHR204-NT6-20
Static (lb)417
Weight(lbs)1.1
Code103932
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)0.787
Tmin (F)-400
MaterialNT600
10 RPM (lb)417
50 RPM (lb)417
100 RPM (lb)417
200 RPM (lb)417
Max Cap Load (lb)417
Max Thrust Load (lb)42
Tservice (F)500
Shaft size20mm
