440mm Bronze Cage Spherical Roller Bearing
Print Page

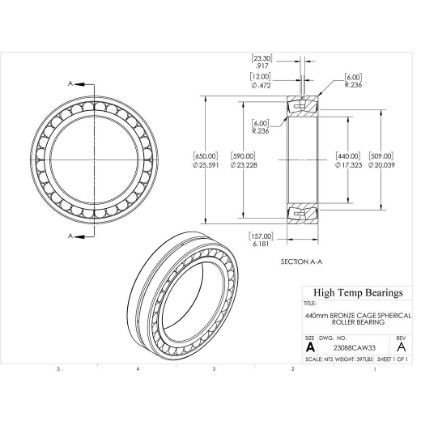

Bronze Cage Double Row Cylindrical Bore Spherical Roller Bearing: 23088CAW33
Bronze Cage Double Row Cylindrical Bore Spherical Roller Bearing: 23088CAW33
Bronze Cage Double Row Cylindrical Bore Spherical Roller Bearing
$31,790.67
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
Specifications:
Description
Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CA series bearings have a machined solid bronze cage that provides exceptional wear performance and roller guiding. It also has raised flanges on the inner race and a floating center metal guide to help track rollers when aligning and assist with axial load distribution. This configuration offers improved performance over other spherical roller bearing designs when frequent dynamic alignment is needed.
Product Information
Attribute name
Attribute value
Code
410716
Shaft Size
440mm
Seals
None
Construction
Cylindrical Bore Bronze Cage
Material
52100
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Dimensions
Attribute name
Attribute value
Bore (mm)
440
D (mm)
650
B (mm)
157
r1-r2 (mm)
6
K (mm)
12
b (mm)
23.3
B1 (mm)
509
B2 (mm)
590
Abutment Dimensions
Attribute name
Attribute value
Da (mm)
627
Damin-db (mm)
463
ramax (mm)
5
Calculation Data
Attribute name
Attribute value
Nr (RPM)
Reference speed
560
Nmax (RPM)
Limiting speed
1000
C (lb)
Dynamic load capacity
820557
C0 (lb)
Static load capacity
1472506
Pu (lb)
Fatigue load limit
101165
e
Limiting value
0.22
Y0
Calculation factor
2.8
Y1
Calculation factor
3
Y2
Calculation factor
4.6
Mass
Attribute name
Attribute value
Weight(lbs)
397
Tolerance Class
Attribute name
Attribute value
Clearance
CN
Safe Loads
Attribute name
Attribute value
Tmax (F)
390
Tmin (F)
-40
