Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 23080CCW33

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 23080CCW33

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing
$24,371.19
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

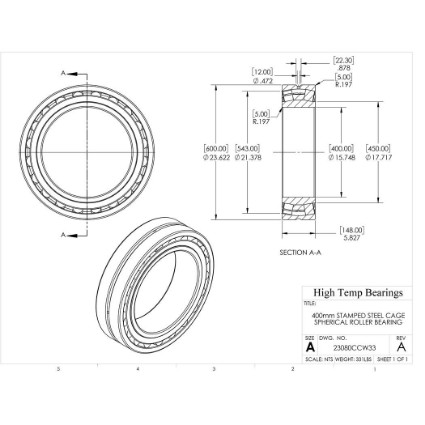

CAD
Specifications:
Description
Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CC and E series bearings have a stamped steel cage and a center floating guide ring between the roller rows. The center floating ring assist provides roller tracking and stabilizes the bearing when accepting axial loads. This variation is good for more dynamically stable applications to reduce roller friction when extra guiding is not necessary.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410714
Shaft Size400mm
SealsNone
ConstructionCylindrical Bore Stamped Steel Cage
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Dimensions
Attribute nameAttribute value
Bore (mm)400
D (mm)600
B (mm)148
r1-r2 (mm)5
K (mm)12
b (mm)22.3
B1 (mm)450
B2 (mm)543
Abutment Dimensions
Attribute nameAttribute value
Da (mm)582
Damin-db (mm)418
ramax (mm)4
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed850
Nmax (RPM)Limiting speed1100
C (lb)Dynamic load capacity730633
C0 (lb)Static load capacity1281417
Pu (lb)Fatigue load limit89924
eLimiting value0.23
Y0Calculation factor2.8
Y1Calculation factor2.9
Y2Calculation factor4.4
Mass
Attribute nameAttribute value
Weight(lbs)331
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)390
Tmin (F)-40
