Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 23038CCW33

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 23038CCW33

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing
$2,336.01
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

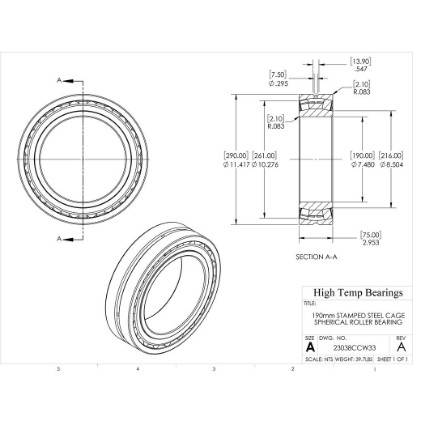

CAD
Specifications:
Attribute nameAttribute value
ConstructionCylindrical Bore Stamped Steel Cage
Shaft Size190mm
D (mm)290
B (mm)75
C (lb)194460
C0 (lb)301244
Pu (lb)194460
Nr (RPM)1900
Nmax (RPM)2400
Weight(lbs)39.7
Code410703
Bore (mm)190
Da (mm)279
SealsNone
ClearanceCN
Tmax (F)390
Tmin (F)-40
Material52100
Damin-db (mm)201
r1-r2 (mm)2.1
ramax (mm)2
e0.23
Y02.8
K (mm)7.5
Y12.9
Y24.4
b (mm)13.9
B1 (mm)216
B2 (mm)261
PackageQTY1
UOMEA
Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CC and E series bearings have a stamped steel cage and a center floating guide ring between the roller rows. The center floating ring assist provides roller tracking and stabilizes the bearing when accepting axial loads. This variation is good for more dynamically stable applications to reduce roller friction when extra guiding is not necessary.
