Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing
$5,160.35

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CC and E series bearings have a stamped steel cage and a center floating guide ring between the roller rows. The center floating ring assist provides roller tracking and stabilizes the bearing when accepting axial loads. This variation is good for more dynamically stable applications to reduce roller friction when extra guiding is not necessary.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code410695
Shaft Size220mm
SealsNone
ConstructionCylindrical Bore Stamped Steel Cage
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

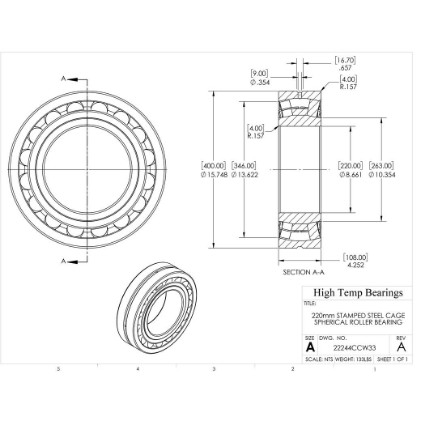

Dimensions

Attribute nameAttribute value
Bore (mm)220
D (mm)400
B (mm)108
r1-r2 (mm)4
K (mm)9
b (mm)16.7
B1 (mm)263
B2 (mm)346

Abutment Dimensions

Attribute nameAttribute value
Da (mm)383
Damin-db (mm)237
ramax (mm)3

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed1500
Nmax (RPM)Limiting speed2000
C (lb)Dynamic load capacity395666
C0 (lb)Static load capacity530552
Pu (lb)Fatigue load limit44063
eLimiting value0.27
Y0Calculation factor2.5
Y1Calculation factor2.5
Y2Calculation factor3.7

Mass

Attribute nameAttribute value
Weight(lbs)133

Tolerance Class

Attribute nameAttribute value
ClearanceCN

Safe Loads

Attribute nameAttribute value
Tmax (F)390
Tmin (F)-40
