200mm Stamped Steel Cage Spherical Roller Bearing
Print Page
Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22240CCW33
Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22240CCW33
Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing
$3,961.04
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
Specifications:
Description
Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CC and E series bearings have a stamped steel cage and a center floating guide ring between the roller rows. The center floating ring assist provides roller tracking and stabilizes the bearing when accepting axial loads. This variation is good for more dynamically stable applications to reduce roller friction when extra guiding is not necessary.
Product Information
Attribute name
Attribute value
Code
410694
Shaft Size
200mm
Seals
None
Construction
Cylindrical Bore Stamped Steel Cage
Material
52100
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA

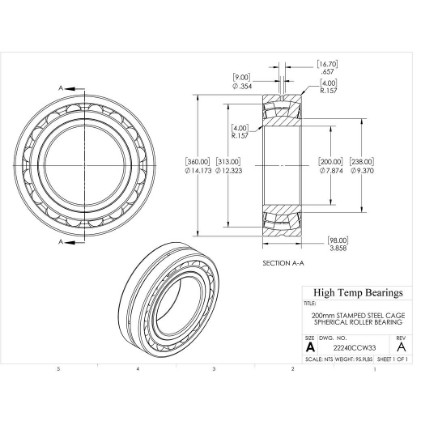

Dimensions
Attribute name
Attribute value
Bore (mm)
200
D (mm)
360
B (mm)
98
r1-r2 (mm)
4
K (mm)
9
b (mm)
16.7
B1 (mm)
238
B2 (mm)
313
Abutment Dimensions
Attribute name
Attribute value
Da (mm)
343
Damin-db (mm)
217
ramax (mm)
3
Calculation Data
Attribute name
Attribute value
Nr (RPM)
Reference speed
1600
Nmax (RPM)
Limiting speed
2200
C (lb)
Dynamic load capacity
328223
C0 (lb)
Static load capacity
433883
Pu (lb)
Fatigue load limit
37318
e
Limiting value
0.26
Y0
Calculation factor
2.5
Y1
Calculation factor
2.6
Y2
Calculation factor
3.9
Mass
Attribute name
Attribute value
Weight(lbs)
95.9
Tolerance Class
Attribute name
Attribute value
Clearance
CN
Safe Loads
Attribute name
Attribute value
Tmax (F)
390
Tmin (F)
-40
