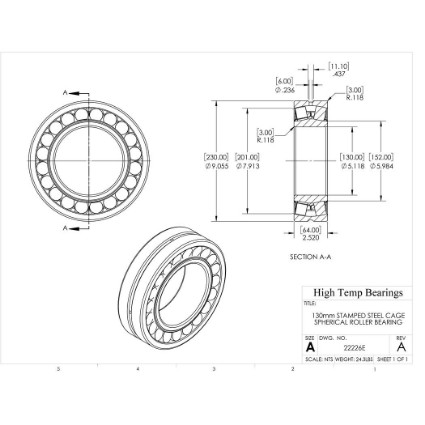

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22226E

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22226E

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing
$1,215.27
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

Specifications:
Attribute nameAttribute value
ConstructionCylindrical Bore Stamped Steel Cage
Shaft Size130mm
D (mm)230
B (mm)64
C (lb)165235
C0 (lb)209073
Pu (lb)19783
Nr (RPM)2600
Nmax (RPM)3600
Weight(lbs)24.3
Code410687
Bore (mm)130
Da (mm)216
SealsNone
ClearanceCN
Tmax (F)390
Tmin (F)-40
Material52100
Damin-db (mm)144
r1-r2 (mm)3
ramax (mm)2.5
e0.27
Y02.5
K (mm)6
Y12.5
Y23.7
b (mm)11.1
B1 (mm)152
B2 (mm)201
PackageQTY1
UOMEA
Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CC and E series bearings have a stamped steel cage and a center floating guide ring between the roller rows. The center floating ring assist provides roller tracking and stabilizes the bearing when accepting axial loads. This variation is good for more dynamically stable applications to reduce roller friction when extra guiding is not necessary.
