Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22218E

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22218E

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing
$525.40

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CC and E series bearings have a stamped steel cage and a center floating guide ring between the roller rows. The center floating ring assist provides roller tracking and stabilizes the bearing when accepting axial loads. This variation is good for more dynamically stable applications to reduce roller friction when extra guiding is not necessary.
Product Information
Attribute nameAttribute value
Code410682
Shaft Size90mm
SealsNone
ConstructionCylindrical Bore Stamped Steel Cage
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

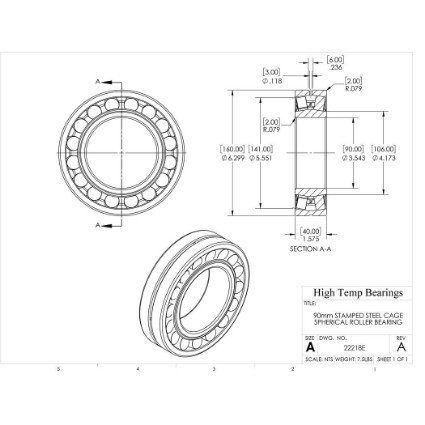

Dimensions
Attribute nameAttribute value
Bore (mm)90
D (mm)160
B (mm)40
r1-r2 (mm)2
K (mm)3
b (mm)6
B1 (mm)106
B2 (mm)141
Abutment Dimensions
Attribute nameAttribute value
Da (mm)149
Damin-db (mm)101
ramax (mm)2
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed3800
Nmax (RPM)Limiting speed5300
C (lb)Dynamic load capacity73063
C0 (lb)Static load capacity84304
Pu (lb)Fatigue load limit8768
eLimiting value0.24
Y0Calculation factor2.8
Y1Calculation factor2.8
Y2Calculation factor4.2
Mass
Attribute nameAttribute value
Weight(lbs)7.5
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)390
Tmin (F)-40
