Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22211E

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22211E

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing
$237.32
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CC and E series bearings have a stamped steel cage and a center floating guide ring between the roller rows. The center floating ring assist provides roller tracking and stabilizes the bearing when accepting axial loads. This variation is good for more dynamically stable applications to reduce roller friction when extra guiding is not necessary.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410675
Shaft Size55mm
SealsNone
ConstructionCylindrical Bore Stamped Steel Cage
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

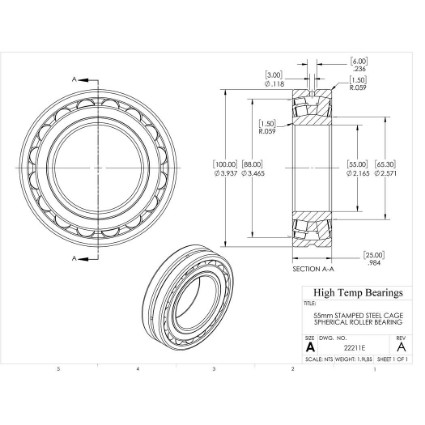

Dimensions
Attribute nameAttribute value
Bore (mm)55
D (mm)100
B (mm)25
r1-r2 (mm)1.5
K (mm)3
b (mm)6
B1 (mm)65.3
B2 (mm)88
Abutment Dimensions
Attribute nameAttribute value
Da (mm)91
Damin-db (mm)64
ramax (mm)1.5
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed6300
Nmax (RPM)Limiting speed8500
C (lb)Dynamic load capacity28101
C0 (lb)Static load capacity28551
Pu (lb)Fatigue load limit3080
eLimiting value0.24
Y0Calculation factor2.8
Y1Calculation factor2.8
Y2Calculation factor4.2
Mass
Attribute nameAttribute value
Weight(lbs)1.9
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)390
Tmin (F)-40
