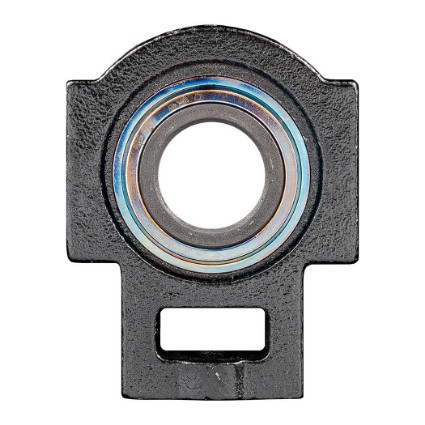

Picture of Take-up Flange HT750 Carbon Sleeve Bearing
Picture of Take-up Flange HT750 Carbon Sleeve Bearing
Picture of Take-up Flange HT750 Carbon Sleeve Bearing
Picture of Take-up Flange HT750 Carbon Sleeve Bearing
Take-up Flange 750 °F Solid Mounted Carbon Sleeve Bearing
$540.99

checkbox icon This item typically ship in 1-4 weeks.

Specifications:

Description

Self-aligning, maintenance-free, carbon-graphite sleeve in a nickel-plated carbon steel backing ring, mounted in a cast iron housing. It uses our proven design that maintains the self-aligning capability of the bearing by preventing oxidation of the spherical surfaces and our tight-grained graphite that resists seizure in outdoor intermittent service applications.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code104461
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesHR
ConstructionTake Up
Shaft Size2-1/2"
MaterialHT750

Dimensions

Attribute nameAttribute value
Bore (in)2.509
ShaftDia (in)2.5
A (in)1.94
B (in)4.16
C (in)1.654
D (in)1.378
F (in)1.26
H (in)5.748
J (in)7.638
L (in)3.436
M (in)4.685
S1 (in)5.118
S2 (in)1.63

Calculation Data

Attribute nameAttribute value
Static (lb)Load capacity intermittent use7500
10 RPM (lb)Load capacity at 10 RPM3760
50 RPM (lb)Load capacity at 50 RPM2360
100 RPM (lb)Load capacity at 100 RPM1180
200 RPM (lb)Load capacity at 200 RPM590
Max Cap Load (lb)2360
Max Thrust Load (lb)376

Mass

Attribute nameAttribute value
Weight(lbs)9.85

Safe Loads

Attribute nameAttribute value
Tmax (F)750
Tmin (F)-40
Tservice (F)Max use temperature in air750

Associated Products

Attribute nameAttribute value
Bearing InsertHR212-HT7-250
