55mm Set Screw Mounted Low Base Pillow Block Bearing|High Temp Bearings

Picture of Standard Duty Low Base Pillow Block

Setscrew Locking Low Base Pillow Block Mounted Ball Bearing

$61.14

Qty:

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

Can handle light to moderate loads, moderate speed, and vibration. All bearings are equipped with close tolerance metal shields, an internal NBR contact seal (B-type), and factory lubricated with an ISO VG 100 PAO base oil, NLGI No. 2, lithium-stearate thickened grease.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		103784
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		UC
Construction		Low Base Pillow Block
Shaft Size		55mm
Sealing		Standard
End Cap		None
Collar		Setscrew
Greasable	Re-lubrication	Greasable

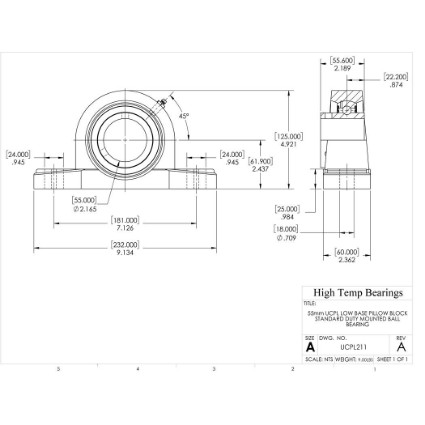

Dimensions

Attribute name		Attribute value
Bore (in)		2.1654
H (in)		2.437
L (in)		9.134
J (in)		7.126
N (in)		0.787
H1 (in)		0.984
H2 (in)		4.921
A (in)		2.362
S (in)		0.874
B (in)		2.189
N1 (in)		0.945

Mass

Attribute name		Attribute value
Weight(lbs)		9

Mounting Information

Attribute name		Attribute value
Bolt		5/8

Associated Products

Attribute name		Attribute value
Bearing Insert		UC211
Housing		PL211
