Stainless Steel Setscrew Locking Ball Bearing Insert
$342.43

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and installs into a standard duty housings. Factory lubricated with H1 certified ISO VG 220 PAO base oil, NLGI No. 2, Aluminium Complex thickened grease.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code103353
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesSUC
Shaft Size2-1/4"
CollarSetscrew
GreasableRe-lubricationGreasable
ConstructionSelf-Aligning

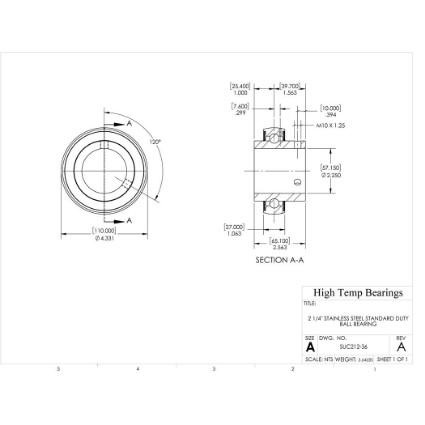

Dimensions

Attribute nameAttribute value
Bore (in)2.25
D (in)4.337
B (in)2.563
S (in)1
C (in)1.63
h (in)0.2992
S1(in)1.563
G (in)0.3937
ds3/8-24 UNF

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic Load Capacity11500
C0 (lb)Static Load Capacity7490

Mass

Attribute nameAttribute value
Weight(lbs)3.68

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
