2-15/16" Setscrew Locking Standard Duty Cylindrical Ball Bearing Insert|High Temp Bearings

Picture of Standard Duty, Setscrew Locking, Cylindrical Ball Bearing Insert

Setscrew Locking Standard Duty Cylindrical Ball Bearing Insert

$88.66

Qty:

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and has a cylindrical OD for using with a cylindrically bored housing or frame. This insert is not self-aligning.

For drawings and 3D models, click on a part number.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		111094
Shaft Size		2-15/16"
Series		SER
Collar		Setscrew
Greasable	Re-lubrication	Greasable
Construction		Cylindrical
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA

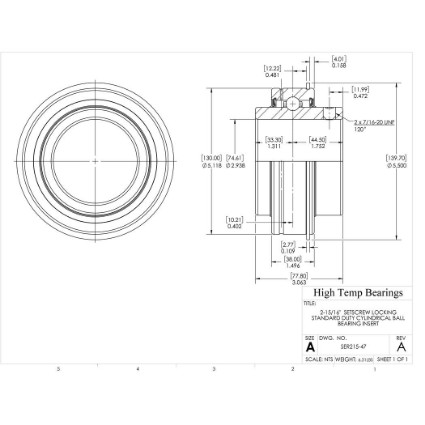

Dimensions

Attribute name		Attribute value
Bore (in)		2.9375
D (in)		5.118
B (in)		3.063
S (in)		1.311
C (in)		1.496
h (in)		0.402
S1(in)		1.752
G (in)		0.472
ds		7/16-20 UNF
P (in)		5.5
R (in)		0.482
J (in)		0.158
A (in)		0.1091

Calculation Data

Attribute name		Attribute value
C (lb)	Dynamic Load Capacity	14682
C0 (lb)	Static Load Capacity	11128

Mass

Attribute name		Attribute value
Weight(lbs)		6.31

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
