1-1/2" Setscrew Locking Standard Duty Cylindrical Ball Bearing Insert|High Temp Bearings

Picture of Standard Duty, Setscrew Locking, Cylindrical Ball Bearing Insert

Setscrew Locking Standard Duty Cylindrical Ball Bearing Insert

$21.41

Qty:

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and has a cylindrical OD for using with a cylindrically bored housing or frame. This insert is not self-aligning.

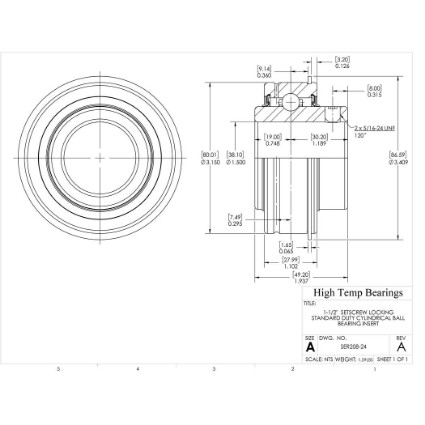

For drawings and 3D models, click on a part number.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		111074
Shaft Size		1-1/2"
Series		SER
Collar		Setscrew
Greasable	Re-lubrication	Greasable
Construction		Cylindrical
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA

Dimensions

Attribute name		Attribute value
Bore (in)		1.5
D (in)		3.15
B (in)		1.937
S (in)		0.748
C (in)		1.102
h (in)		0.295
S1(in)		1.189
G (in)		0.315
ds		5/16-24 UNF
P (in)		3.409
R (in)		0.36
J (in)		0.126
A (in)		0.065

Calculation Data

Attribute name		Attribute value
C (lb)	Dynamic Load Capacity	6636
C0 (lb)	Static Load Capacity	4078

Mass

Attribute name		Attribute value
Weight(lbs)		1.59

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
