3/4"Light Duty Setscrew Locking Agriculture 3 Bolt Flange Bearing|High Temp Bearings

Picture of Light Duty Setscrew Locking Agriculture 3 Bolt Flange

Light Duty Setscrew Locking Agriculture 3 Bolt Flange Bearing

$20.75

Qty:

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

Can handle light to moderate loads, moderate speed, and vibration. All bearings are equipped with close tolerance metal shields, an internal NBR contact seal (K-type), and factory lubricated with an ISO VG 100 PAO base oil, NLGI No. 2, lithium-stearate thickened grease. They are narrower than the standard duty configuration but have similar capacity.

For drawings and 3D models, click on a part number.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		110943
Shaft Size		3/4"
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SBTRD-G
Construction		3-Bolt Bracket-Ag
Sealing		K-type
End Cap		None
Collar		Setscrew
Greasable	Re-lubrication	Greasable

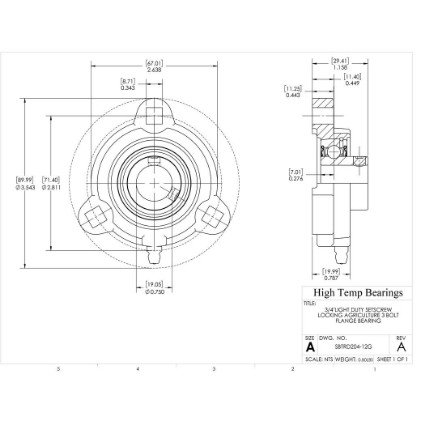

Dimensions

Attribute name		Attribute value
Bore (in)		0.75
L (in)		3.543
A2 (in)		0.449
A1 (in)		0.443
A (in)		0.787
N (in)		0.343
E (in)		1.158
S (in)		0.276
P (in)		2.811
L1 (in)		2.638

Mass

Attribute name		Attribute value
Weight(lbs)		0.8

Mounting Information

Attribute name		Attribute value
Bolt		5/16

Associated Products

Attribute name		Attribute value
Bearing Insert		SB204-12G
Housing		TRD204
