1-3/8"Narrow Setscrew Locking Non-Greaseable Pillow Block Bearing|High Temp Bearings

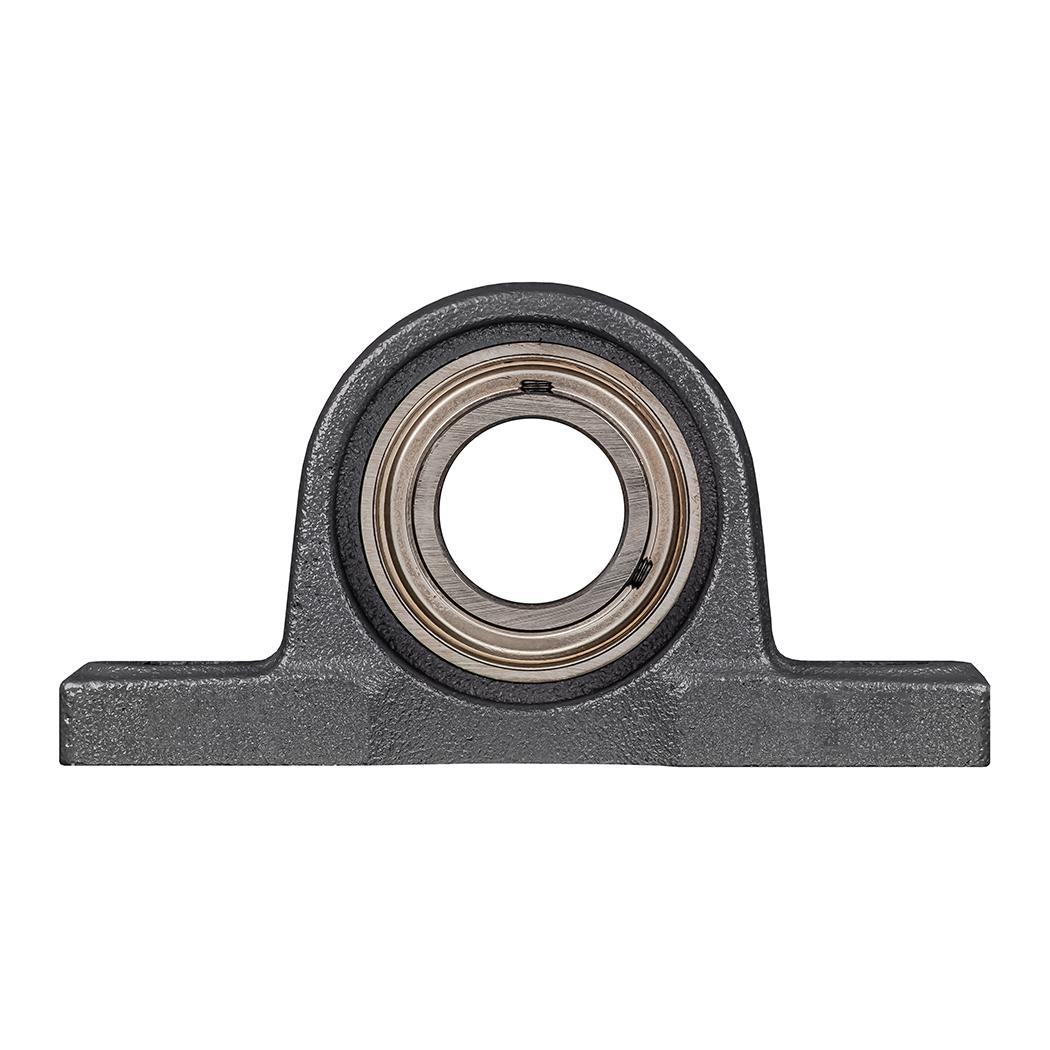

Picture of Non-Greaseable Narrow Setscrew Locking Pillow Block

Narrow Setscrew Locking Non-Greaseable Pillow Block Bearing

$30.55

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Can handle light to moderate loads, moderate speed, and vibration. All bearings are equipped with close tolerance metal shields, an internal NBR contact seal (K-type), and factory lubricated with an ISO VG 100 PAO base oil, NLGI No. 2, lithium-stearate thickened grease. They are narrower than the standard duty configuration but have similar capacity. These units are plugged to prevent contamination and cannot be re-greased.

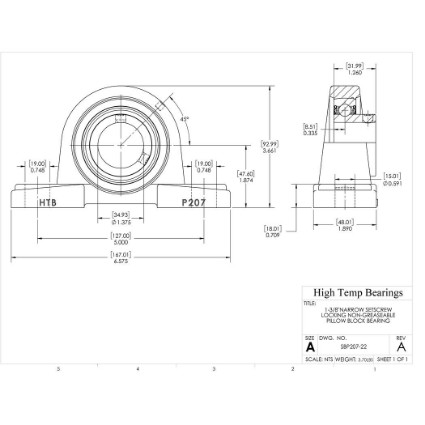

For drawings and 3D models, click on a part number.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		110195
Shaft Size		1-3/8"
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SBP
Construction		Pillow Block
Sealing		K-type
End Cap		None
Collar		Setscrew
Greasable	Re-lubrication	Non-Greaseable

Dimensions

Attribute name		Attribute value
Bore (in)		1.375
H (in)		1.874
L (in)		6.575
J (in)		5
H1 (in)		0.709
H2 (in)		3.661
A (in)		1.89
N (in)		0.591
S (in)		0.335
B (in)		1.26
N1 (in)		0.748

Mass

Attribute name		Attribute value
Weight(lbs)		3.7

Mounting Information

Attribute name		Attribute value
Bolt		1/2

Associated Products

Attribute name		Attribute value
Bearing Insert		SB207-22
Housing		P207
