1"Narrow Setscrew Locking Non-Greaseable Solid Base Pillow Block Mounted Bearing|High Temp Bearings

Picture of Non-Greaseable Narrow Setscrew Locking Solid Base Pillow Block

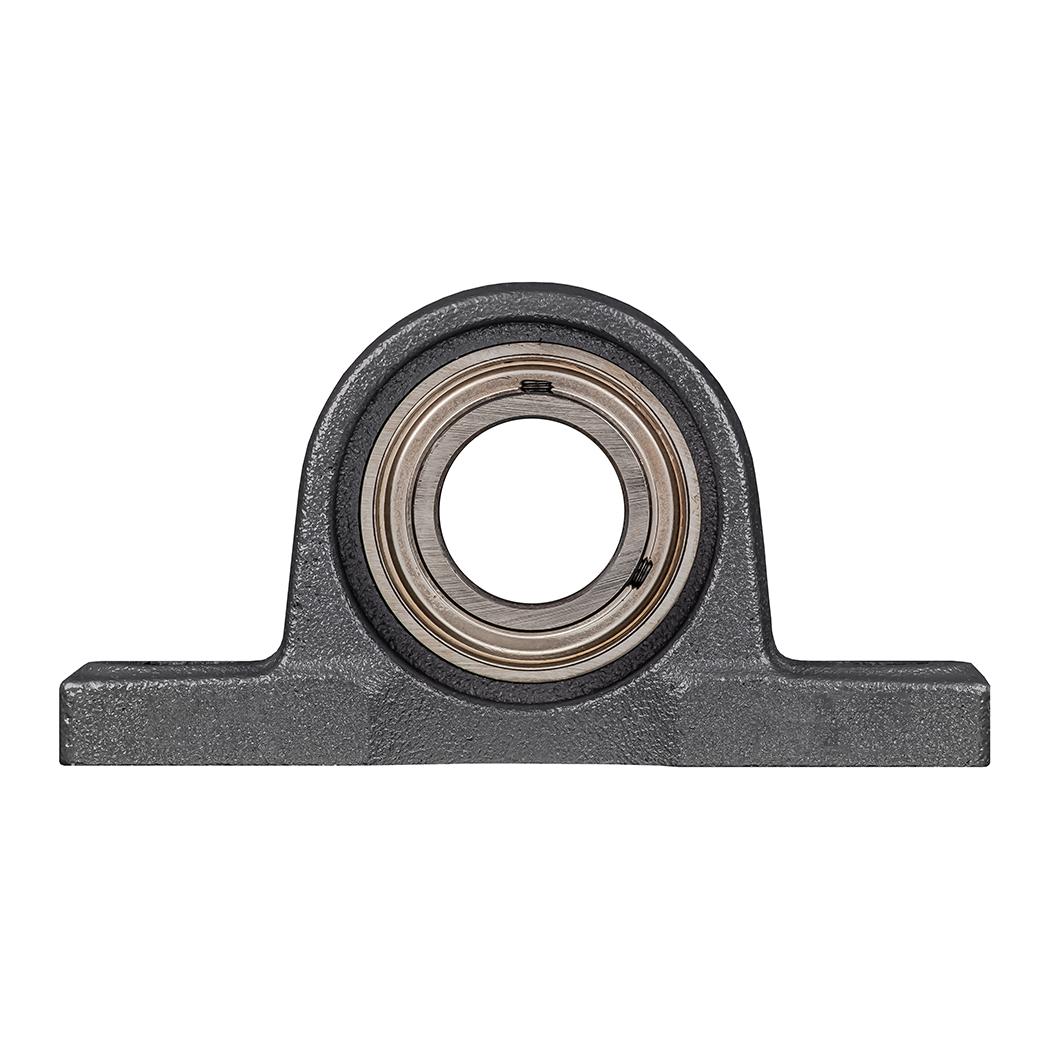

Narrow Setscrew Locking Non-Greaseable Solid Base Pillow Block Mounted Bearing

$19.25

This product has a minimum quantity of 2

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Can handle light to moderate loads, moderate speed, and vibration. All bearings are equipped with close tolerance metal shields, an internal NBR contact seal (K-type), and factory lubricated with an ISO VG 100 PAO base oil, NLGI No. 2, lithium-stearate thickened grease. They are narrower than the standard duty configuration but have similar capacity. These units are plugged to prevent contamination and cannot be re-greased.

For drawings and 3D models, click on a part number.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		110285
Shaft Size		1"
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SBLP
Construction		Pillow Block
Sealing		K-type
End Cap		None
Collar		Setscrew
Greasable	Re-lubrication	Non-Greaseable

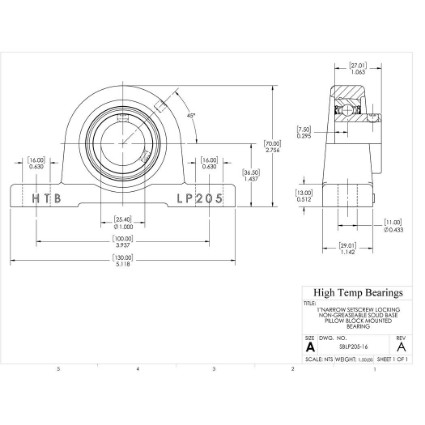

Dimensions

Attribute name		Attribute value
Bore (in)		1
H (in)		1.437
L (in)		5.118
J (in)		3.937
H1 (in)		0.512
H2 (in)		2.756
A (in)		1.142
N (in)		0.433
S (in)		0.295
B (in)		1.063
N1 (in)		0.63

Mass

Attribute name		Attribute value
Weight(lbs)		1.5

Mounting Information

Attribute name		Attribute value
Bolt		3/8

Associated Products

Attribute name		Attribute value
Bearing Insert		SB205-16
Housing		LP205
