1-1/2"Narrow Setscrew Locking 4 Bolt Flange Mounted Bearing|High Temp Bearings

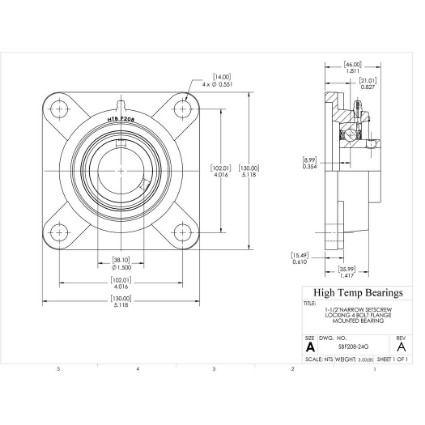

Picture of Narrow Setscrew Locking 4 Bolt Flange

Narrow Setscrew Locking 4 Bolt Flange Mounted Bearing

$34.85

Qty:

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

Can handle light to moderate loads, moderate speed, and vibration. All bearings are equipped with close tolerance metal shields, an internal NBR contact seal (K-type), and factory lubricated with an ISO VG 100 PAO base oil, NLGI No. 2, lithium-stearate thickened grease. They are narrower than the standard duty configuration but have similar capacity.

For drawings and 3D models, click on a part number.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		110497
Shaft Size		1-1/2"
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SBF-G
Construction		4-Bolt Flange
Sealing		K-type
End Cap		None
Collar		Setscrew
Greasable	Re-lubrication	Greasable

Dimensions

Attribute name		Attribute value
Bore (in)		1.5
L (in)		5.118
J (in)		4.016
A2 (in)		0.827
A1 (in)		0.61
A (in)		1.417
N (in)		0.551
E (in)		1.811
S (in)		0.354

Mass

Attribute name		Attribute value
Weight(lbs)		3.5

Mounting Information

Attribute name		Attribute value
Bolt		1/2'

Associated Products

Attribute name		Attribute value
Bearing Insert		SB208-24G
Housing		F208
