1"Narrow Eccentric Collar Take Up Flange Mounted Bearing|High Temp Bearings

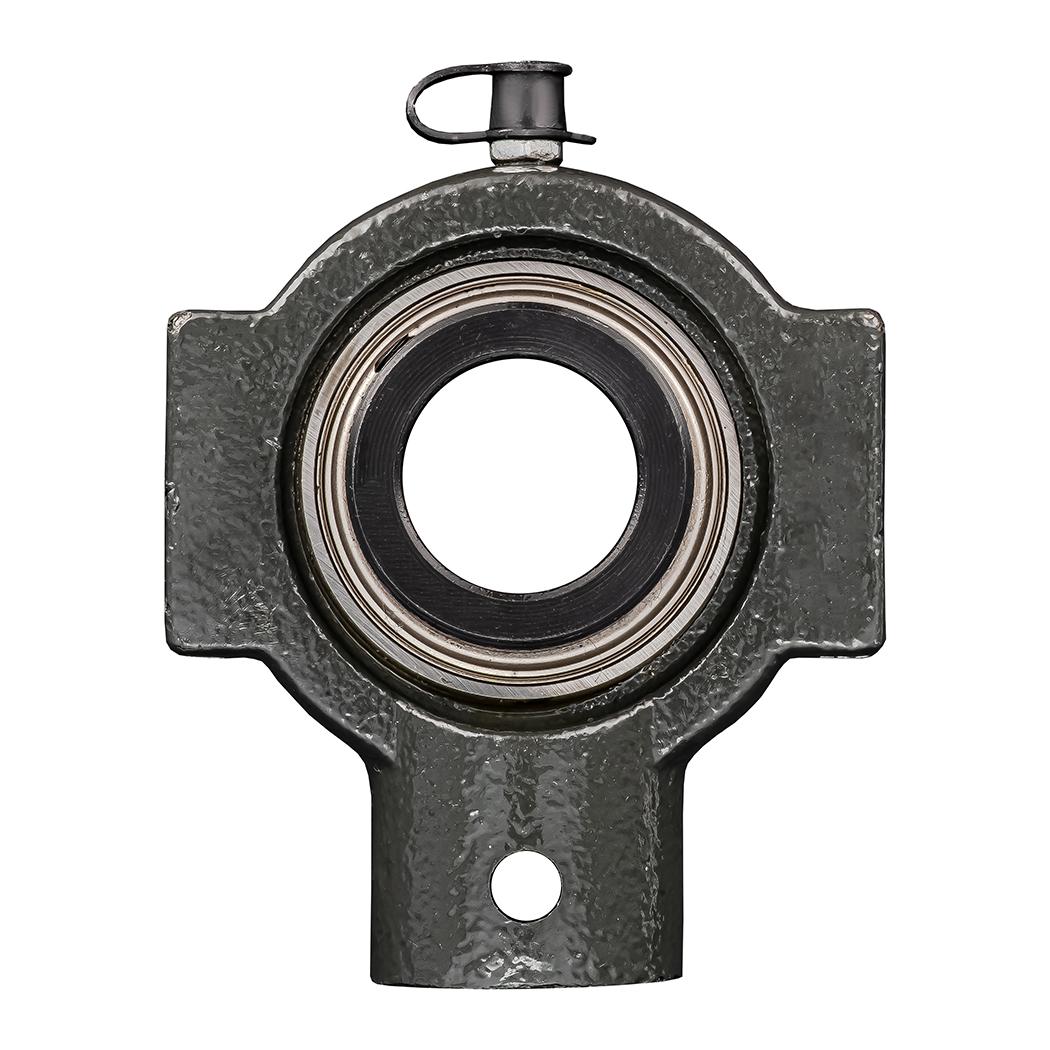

Picture of Narrow Eccentric Collar Take Up Flange

Narrow Eccentric Collar Take Up Flange Mounted Bearing

$28.30

Qty:

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

Can handle light to moderate loads, moderate speed, and increased vibration. All bearings are equipped with close tolerance metal shields, an internal NBR contact seal (K-type), and factory lubricated with an ISO VG 100 PAO base oil, NLGI No. 2, lithium-stearate thickened grease. They are narrower than the standard duty configuration but have similar capacity.

For drawings and 3D models, click on a part number.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		110999
Shaft Size		1"
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SATRS-G
Construction		Take Up
Sealing		K-type
End Cap		None
Collar		Eccentric
Greasable	Re-lubrication	Greasable

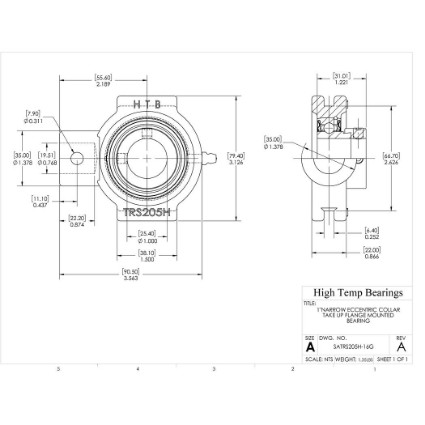

Dimensions

Attribute name		Attribute value
Bore (in)		1
H (in)		3.126
L (in)		3.563
A2 (in)		0.866
A1 (in)		0.252
H1 (in)		2.626
A (in)		1.378
N (in)		0.768
B (in)		1.221
F (in)		0.311
G (in)		0.437
L1 (in)		2.189
L2 (in)		0.874
L3 (in)		1.5

Mass

Attribute name		Attribute value
Weight(lbs)		1.35

Associated Products

Attribute name		Attribute value
Bearing Insert		SA205-16G
Housing		TRS205H
