1/2"Light Duty Eccentric Collar 2 Bolt Flange Mounted Bearing|High Temp Bearings

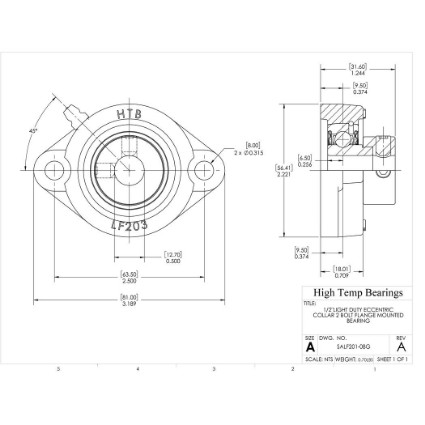

Picture of Light Duty Eccentric Collar 2 Bolt Flange

Light Duty Eccentric Collar 2 Bolt Flange Mounted Bearing

$17.60

This product has a minimum quantity of 2

Qty:

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

Can handle light to moderate loads, moderate speed, and increased vibration. All bearings are equipped with close tolerance metal shields, an internal NBR contact seal (K-type), and factory lubricated with an ISO VG 100 PAO base oil, NLGI No. 2, lithium-stearate thickened grease. They are narrower than the standard duty configuration but have similar capacity.

For drawings and 3D models, click on a part number.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		110791
Shaft Size		1/2"
Series		SALF-G
Construction		2-Bolt Flange
Sealing		K-type
End Cap		None
Collar		Eccentric
Greasable	Re-lubrication	Greasable
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA

Dimensions

Attribute name		Attribute value
Bore (in)		0.5
H (in)		3.189
L (in)		2.221
J (in)		2.5
A2 (in)		0.374
A1 (in)		0.374
A (in)		0.709
N (in)		0.315
E (in)		1.244
S (in)		0.256

Mass

Attribute name		Attribute value
Weight(lbs)		0.7

Mounting Information

Attribute name		Attribute value
Bolt		1/4

Associated Products

Attribute name		Attribute value
Bearing Insert		SA201-08G
Housing		LF203
