Home
>
Heavy Duty Mounted Bearings
>
S2000 Mounted Spherical Roller Bearings
>
75mm S2000 Non Expansion Wide Slot Take Up Heavy Duty Bearing
Print Page
Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-75MMRSN
Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-75MMRSN
S2000 Non Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$1,014.38
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.

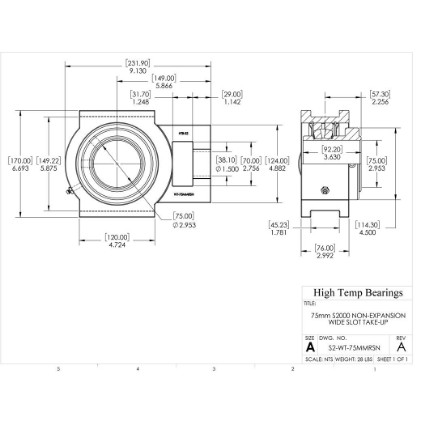

CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
Wide Slot Take-Up
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
75mm
A (mm)
231.9
B (mm)
76
C (mm)
170
D (mm)
114.3
E (mm)
149.22
Bolt
38.1
H (mm)
149
J (mm)
120
K (mm)
70
L (mm)
92.2
M (mm)
31.7
P (mm)
124
S (mm)
45.23
Co (lb)
52830
Weight(lbs)
28
Code
105517
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
75
G (mm)
29
T (mm)
63.3
C (lb)
41590
Max RPM-Triple Lip Seal
1500
Max RPM-PTFE Seal
2040
Max RPM-Metal Labyrinth Seal
2150
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
