Heavy Duty S2000 4 Bolt Flange: S2-4BF-175RSE

Heavy Duty S2000 4 Bolt Flange: S2-4BF-175RSE

S2000 Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$496.31
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size1-3/4"

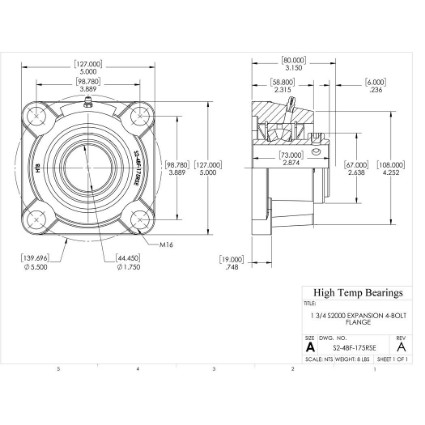

A (mm)127
B (mm)58.8
C (mm)80
D (mm)67
E (mm)98.78
BoltM16
H (mm)19
J (mm)108
K (mm)140
L (mm)73
Co (lb)21360
Weight(lbs)8
Code105378
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)44.45
X (mm)6
C (lb)17980
Max RPM-Triple Lip Seal2425
Max RPM-PTFE Seal3360
Max RPM-Metal Labyrinth Seal3360
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
